Front panels & housings
Logos, scales, labels and symbols on plastic or metal parts.
Crowdfunding coming soon

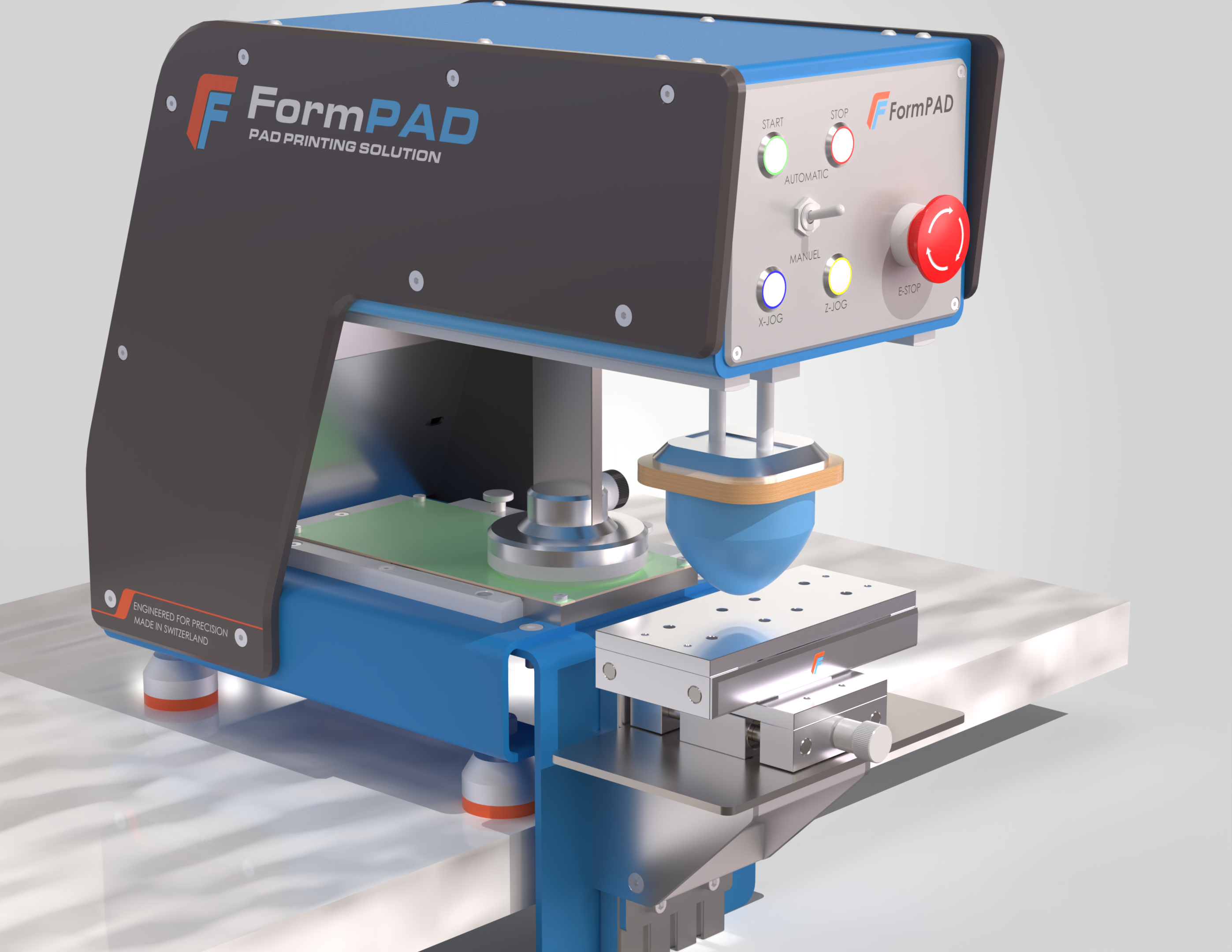

Compact Pad Printer for Small Series
FormPAD is a professional electropneumatic pad-printing machine for makers, labs, workshops and prototype production.
1-color printingfor small workpieces
Siemens LOGO!planned control system
Made in Switzerlanddeveloped in Basel
For small to medium workpieces
Pad printing made simple.
FormPAD is designed for precise, repeatable prints on housings, front panels, technical parts, promotional items and prototypes — compact enough for a workbench, yet far more professional than a DIY solution.

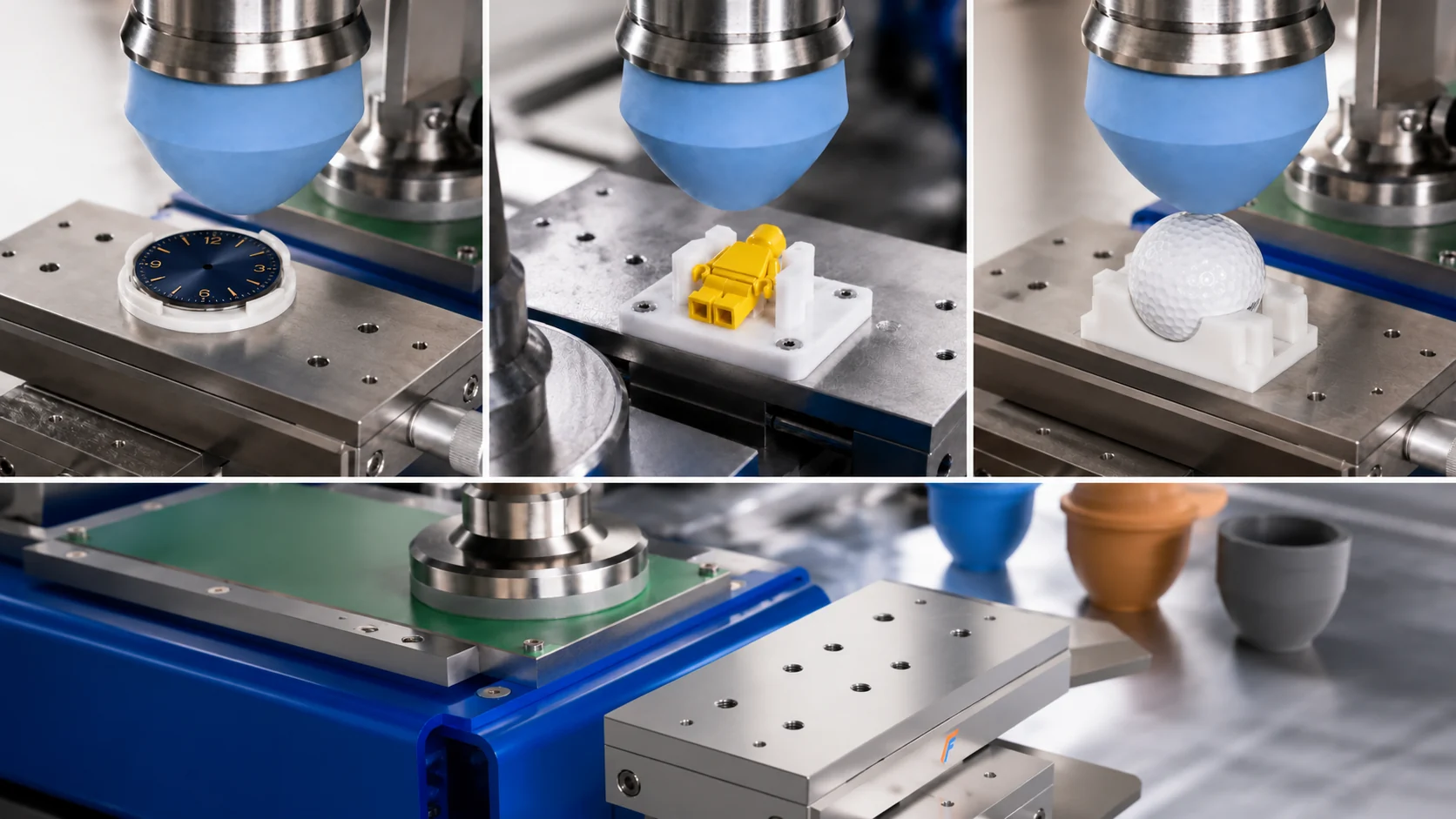

Applications
Precise prints on different shapes
From flat dials to curved surfaces: pad printing is ideal when small parts need clean and repeatable markings.
Prototypes & labs
Fast marking of small batches without a large industrial system.
Promotional & technical parts
Repeatable printing on small complex parts and products.

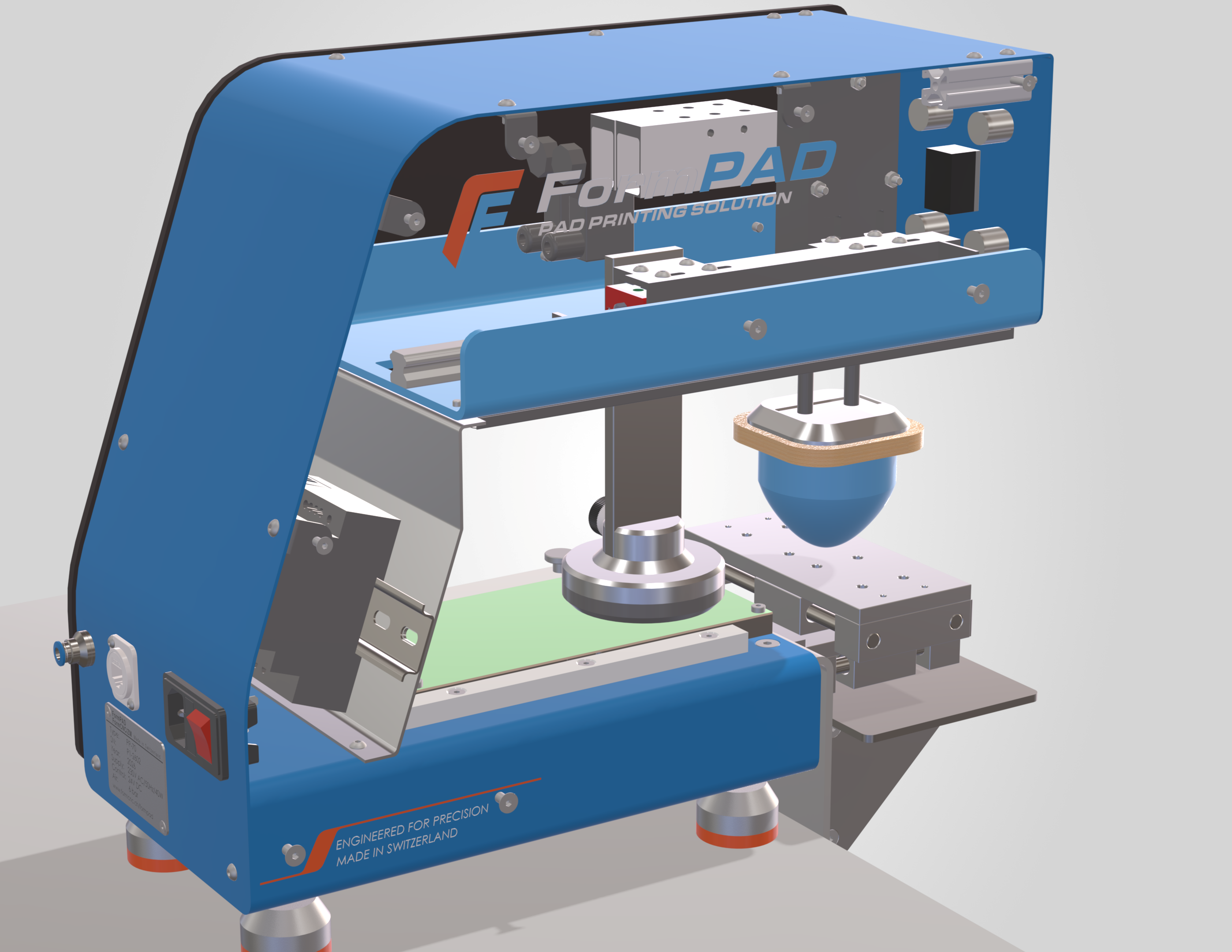

Inside FormPAD
Compact technology, cleanly integrated
The transparent view shows the professional structure: rigid mechanics, integrated control, linear motion and a compact machine frame.
- Electropneumatic X/Z motion
- Adjustable timings for automatic mode
- Manual jog mode for setup and testing
- Compact workbench design
Details
Robust mechanics and clear operation

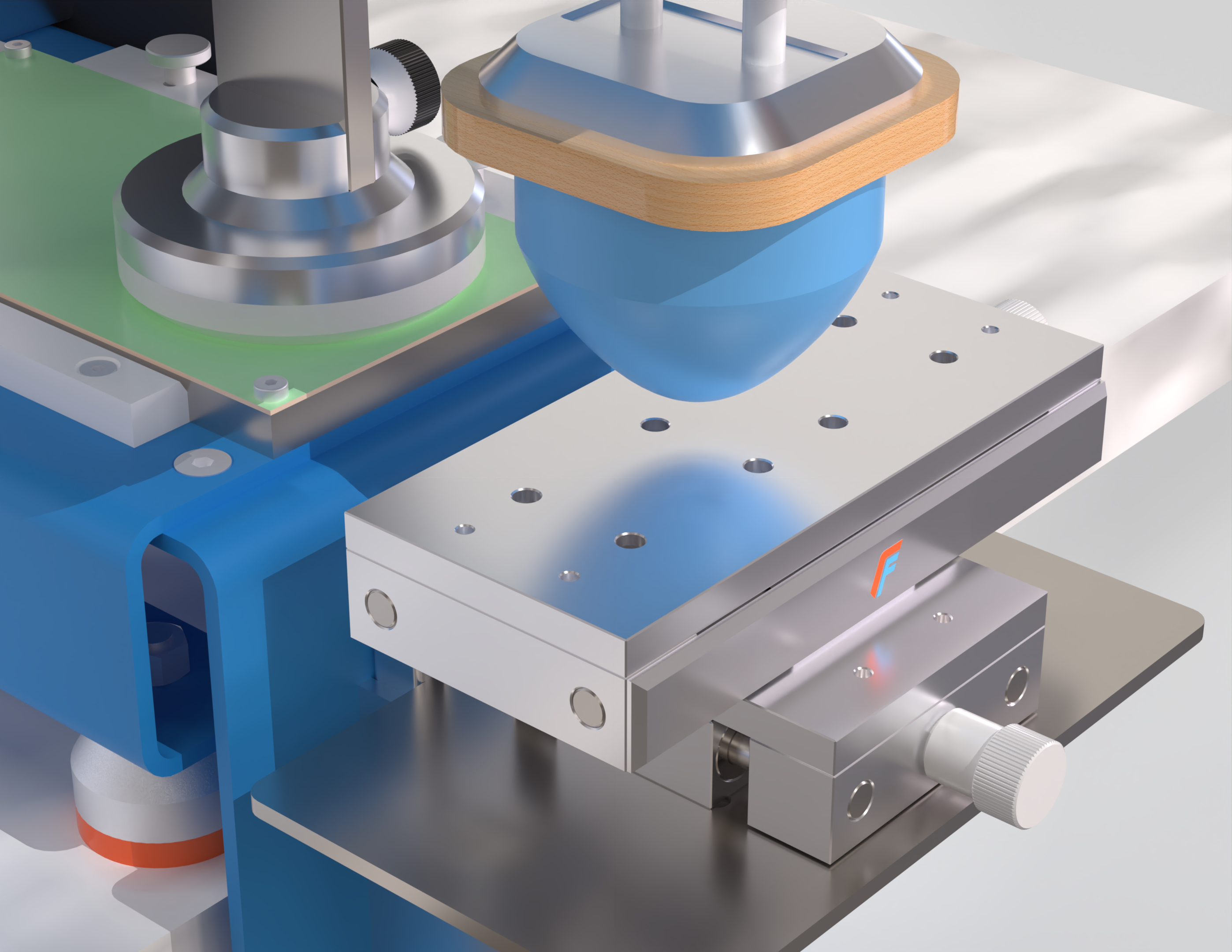

Print head & worktable
Adjustable worktable, solid metal components and a clearly visible printing area.

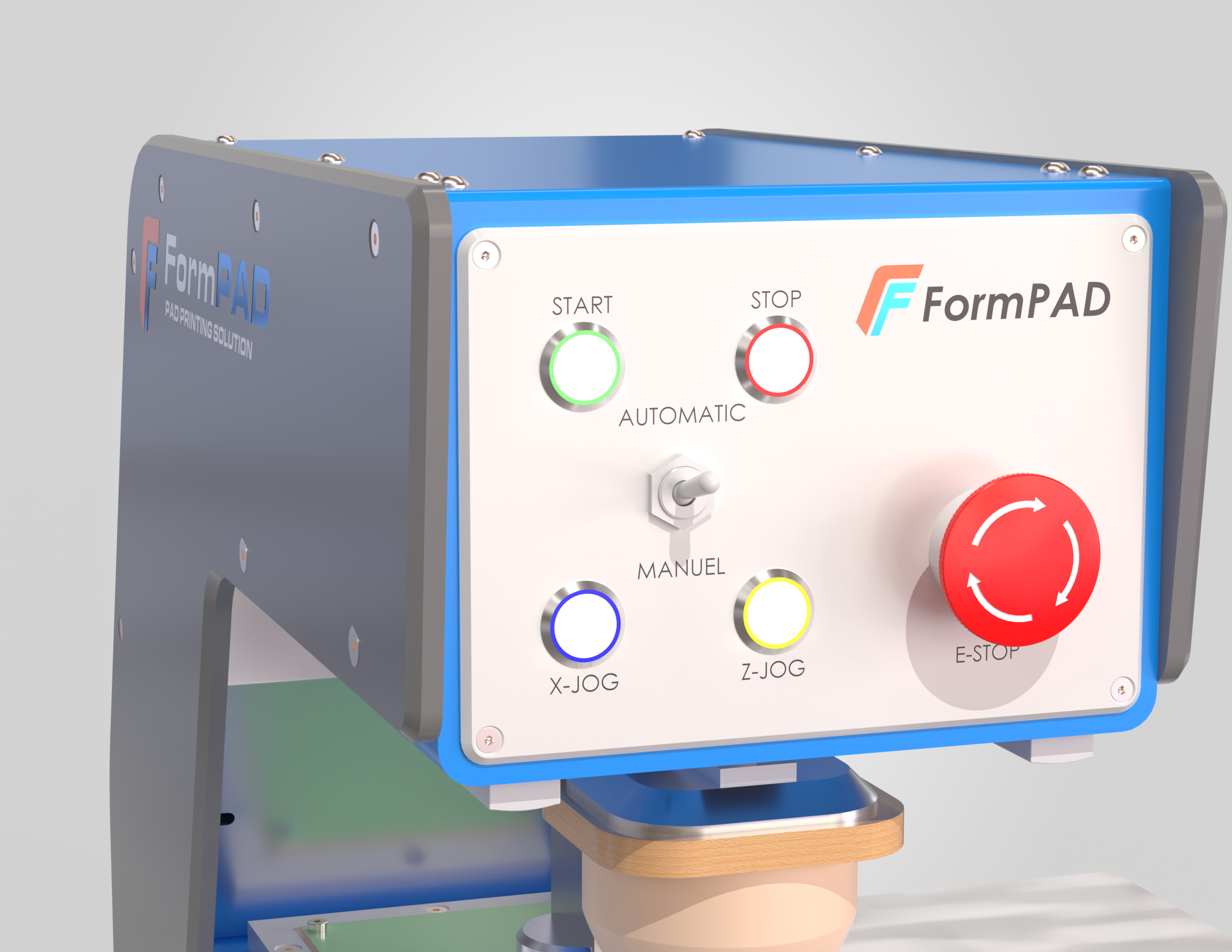

Control panel
Start, stop, emergency stop, automatic/manual and jog functions in a clear layout.

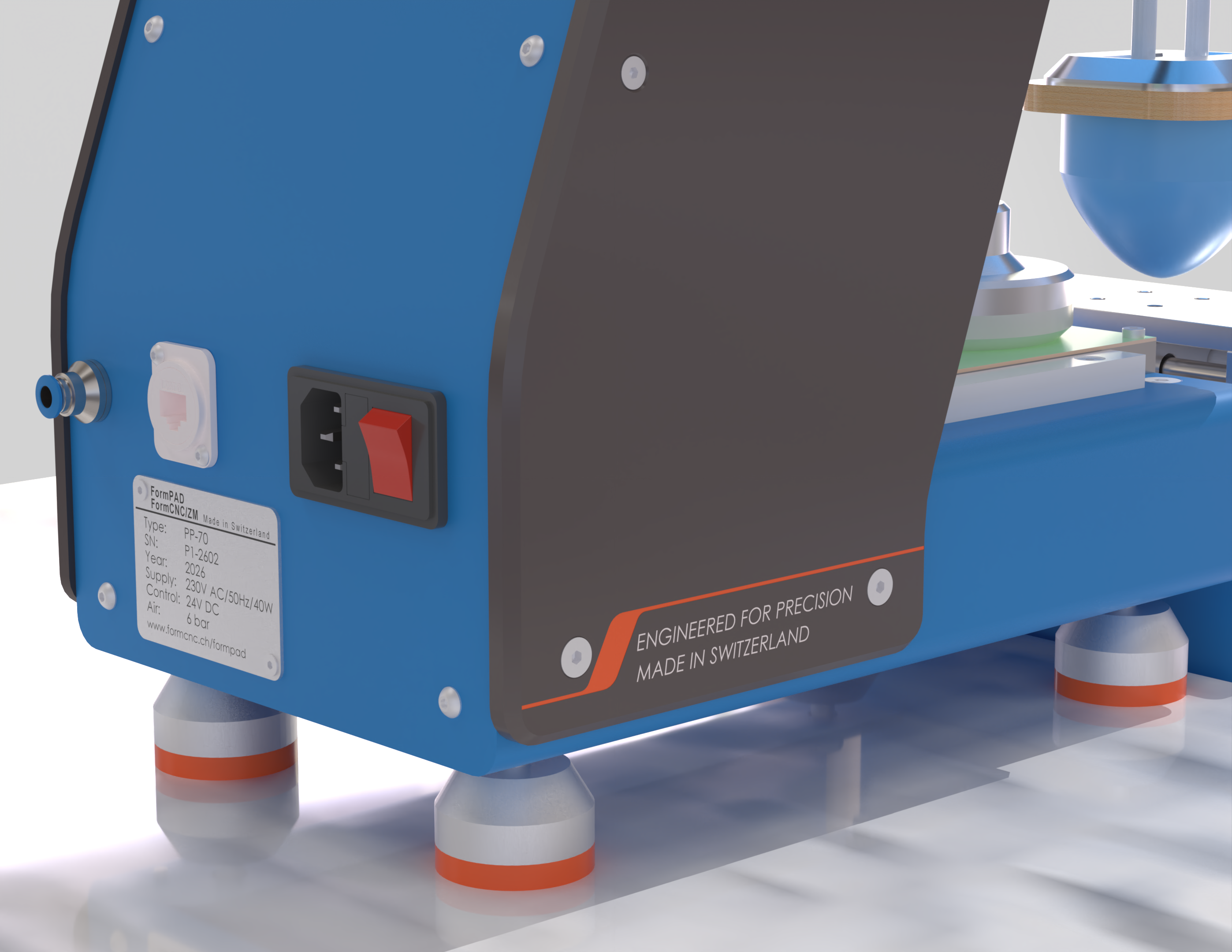

Connections
230 V power, air connection and type plate neatly integrated on the rear side.
Technical key data
Planned specification
Final data may still change slightly after prototype testing and pre-series production.
Machine type1-color Pad Printer
Control systemSiemens LOGO! 8.4
Power supply230 V AC / 24 V DC
Pneumaticsapprox. 6 bar
Ink cupapprox. 70 mm
Cliché plateapprox. 100 × 200 mm
OperationAuto / Manual / Jog
Target usersMakers, labs, workshops
Crowdfunding planned
Early-Bird units for the first supporters
FormPAD is planned to launch as a small pre-series. The goal is a realistic, high-quality machine for small-batch production — not cheap, but reliable, precise and cleanly engineered.
Planned Early-Bird€1,799Regular approx. €2,199 · Goal: 25 machines
Interested?
Reserve your Early-Bird spot
Send me a short message about how you would use FormPAD. I will contact you as soon as the campaign or pre-series starts.
FAQ
Quick answers
Who is FormPAD for?
For makers, workshops, labs, schools, prototype production and small series.
Is it a kit?
The plan is a finished machine, not just a DIY project.
When will the campaign start?
After product images, tests, calculation and the campaign page are completed.
Can I register interest early?
Yes, use the email button to join the Early-Bird information list.
